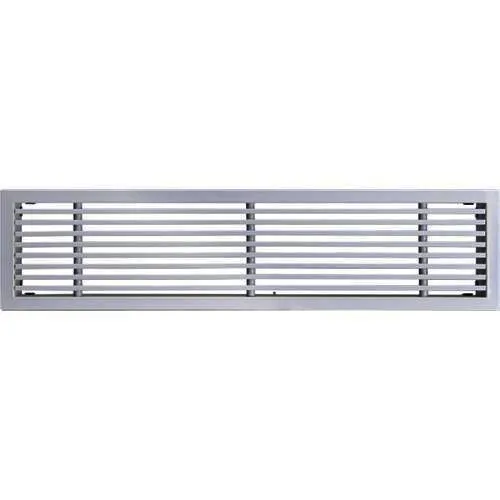

Aluminum Hvac Duct Grill

Aluminum Hvac Duct Grill

Product Specifications
Specification Details
Minimum Order Quantity 10 sq ft
Material Aluminium
Part Type Air Grille
Product Type Duct Grill
Brand Apex
Material Specification 600 x 150 mm, Length customized, Height 100 mm, 150 mm, 200 mm, 250 mm
Size Coated
Color RAL 9016, Broken White
Position Interior
Service Available YES
Surface Finish Powder Coated
Technique Machine Fabricated
Country of Origin Made in India
Construction Frame:

Frame: Premium extruded aluminum profile with a standard flange width of 30 mm, and optional widths of 12, 16, or 24 mm.

Face Bars: High-grade aluminum profiles with 0, 15 – 1 way throw, and 15 – 2 way throw options.

Bar Spacing: Standard spacing of 12 mm, with an optional 6 mm spacing.

Grille Width: Ranges from 50 mm to 300 mm in 50 mm increments.

Length: Standard length of 1 meter, available in sizes from 0.2 m to 5.8 m in a single piece.
